1. What was actually signed?

On July 24, Intel and Lens Technology announced a strategic collaboration to explore glass-substrate advanced packaging. The central topic is TGV: forming microscopic vias through glass, laser-processing them, metallizing them and connecting multiple routing layers so power and data can move through the package.

Intel’s release repeatedly uses the language of exploration and potential. A summary of Lens’s listed-company disclosure says most MOU terms are non-binding and that engineering validation, certification or mass production would require separate written agreements. The completed event is a cooperation framework—not a purchase order, supply contract or factory decision.

2. Why an AI accelerator needs a better foundation

Modern AI packages can combine compute tiles, high-bandwidth memory and I/O dies into one system. The substrate underneath supports those parts and carries thousands of connections. As packages grow, flatness, thermal expansion and alignment become constraints on performance and manufacturing yield.

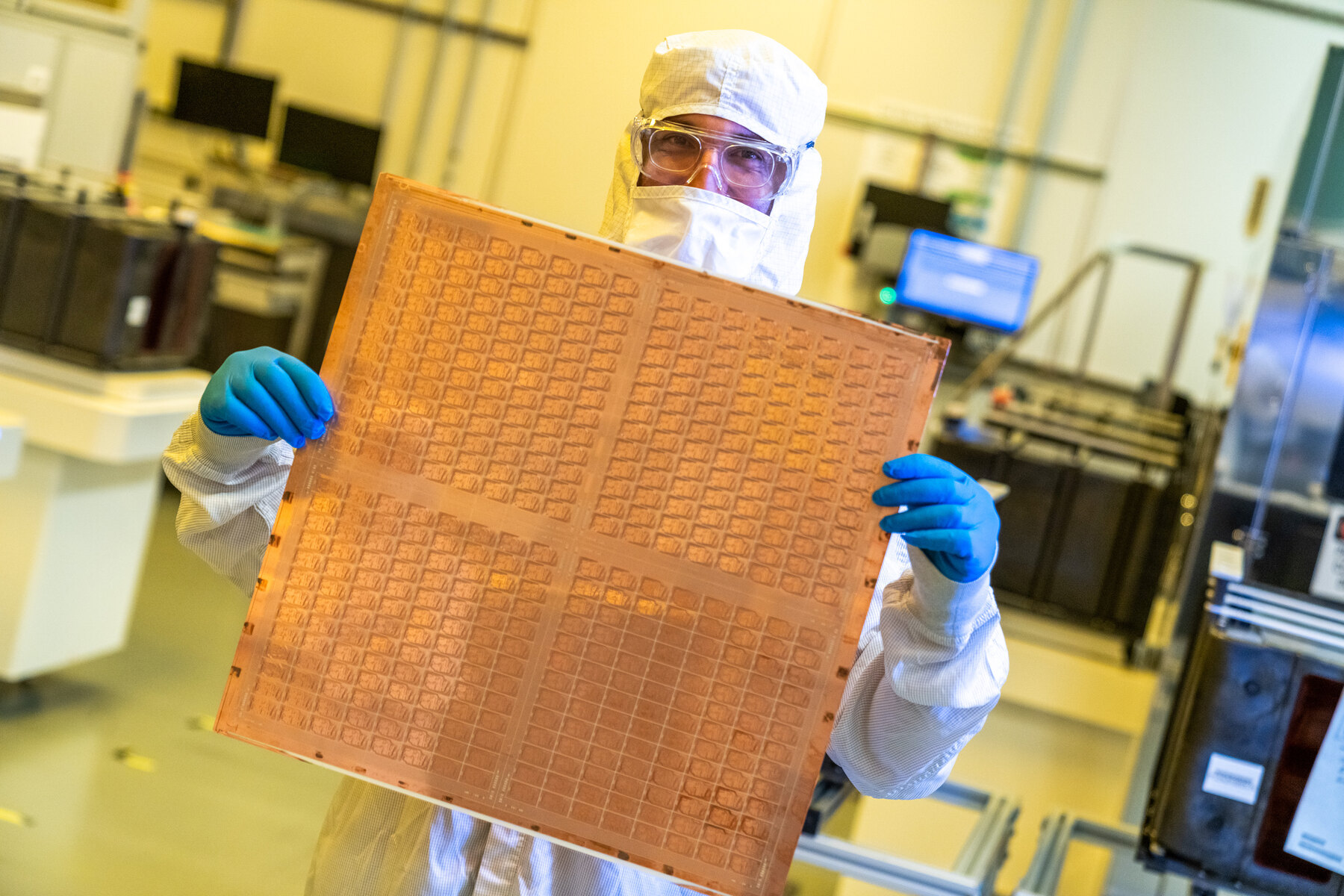

Intel says glass is mechanically and thermally more stable than organic substrates and could support finer routing and larger packages. Its often-cited potential for up to 10 times interconnect density comes from Intel’s 2023 technical work, not an independent benchmark of an Intel–Lens commercial product. It is an engineering possibility, not a cost or performance guarantee.

3. The TGV manufacturing handoff

The disclosures assign Intel illustrative architecture, design-for-manufacturing guidance, benchmark methods and validation methods. Lens brings via formation, precision laser processing, metal-filled deposition, multilayer routing and experience scaling precision glass production.

The hard part is not making attractive glass. It is repeating millions of connections without microcracks or metal voids while keeping a large panel flat through heat and assembly. A lab sample is not production yield. The decisive measures are good-unit yield across lots, dimensional stability, thermal-cycle reliability and cost per accepted substrate.

  • Form dense, consistent holes through glass.
  • Metallize each via without voids or opens.
  • Align routing layers across a large package.
  • Survive heat, moisture and mechanical stress.
  • Move from sample success to repeatable volume yield.

4. Do not confuse glass with Intel’s current packaging tools

Intel’s July 29 explainer describes packaging technologies already in use: Foveros stacking, EMIB silicon bridges and EMIB-T power-delivery channels. These are interconnect and assembly methods. A glass substrate is a future material platform that might host complementary interconnects; it is not another name for EMIB or Foveros.

Current advanced-packaging factories and proven processes do not establish glass-substrate volume production. Intel’s 2023 roadmap targeted complete glass-substrate solutions for the second half of the decade. A target remains forward-looking until a qualified product, customer and shipments are disclosed.

5. What the MOU does not disclose

The published sources provide no price, contracted volume, shipment schedule, named end customer, qualified capacity, yield figure or AI package committed to glass. Lens’s disclosure also said the TGV business had not materially affected operating performance at the announcement date.

Those gaps do not erase the research value; they define the investment stage. Treat the news as supplier-chain formation, not guaranteed revenue. It becomes an economic event through a binding engineering agreement, documented qualification, a purchase order, shipments and then revenue assigned to a precise financial period.

6. A buyer and investor checklist

Glass packaging creates opportunities beyond leading-edge wafer fabs: materials, precision lasers, metallization, optical inspection, thermal reliability, assembly and test. Each is valuable, but each needs qualified customers and process talent—not just announced floor space.

A credible project begins with one product and a real qualification partner, then a pilot line with yield, cost and lifetime-test gates. Export controls, intellectual property and equipment sourcing also matter. A promotional memorandum without a qualification path is not a supply chain.

  • Require separate contracts for prototype, qualification and volume.
  • Track cost per good substrate, not theoretical density alone.
  • Look for a named product and end-customer qualification.
  • Separate announced, installed and qualified capacity.
  • Tie incentives to measurable know-how transfer and orders.
